硬质合金焊接刀片
Cemneted carbide brazed tips |
| ·国际标准Tips
as per ISO
|
|
|

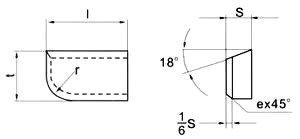

·HA型(Type)
Type |
Dimension(mm) |
l |
t |
s |
r |
HA5 |
5.0 |
3.0 |
2.0 |
2.0 |
HA6 |
6.0 |
4.0 |
2.5 |
2.5 |
HA8 |
8.0 |
5.0 |
3.0 |
3.0 |
HA10 |
10.0 |
6.0 |
4.0 |
4.0 |
HA12 |
12.0 |
8.0 |
5.0 |
5.0 |
HA16 |
16.0 |
10.0 |
6.0 |
6.0 |
HA20 |
20.0 |
12.0 |
7.0 |
7.0 |
HA25 |
25.0 |
14.0 |
8.0 |
8.0 |
HA32 |
32.0 |
18.0 |
10.0 |
10.0 |
HA40 |
40.0 |
22.0 |
12.0 |
12.0 |
HA50 |
50.0 |
25.0 |
14.0 |
14.0 |
|
|
|

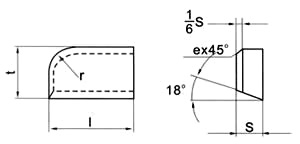

·HB型(Type)
Type |
Dimension(mm) |
l |
t |
s |
r |
HB5 |
5.0 |
3.0 |
2.0 |
2.0 |
HB6 |
6.0 |
4.0 |
2.5 |
2.5 |
HB8 |
8.0 |
5.0 |
3.0 |
3.0 |
HB10 |
10.0 |
6.0 |
4.0 |
4.0 |
HB12 |
12.0 |
8.0 |
5.0 |
5.0 |
HB16 |
16.0 |
10.0 |
6.0 |
6.0 |
HB20 |
20.0 |
12.0 |
7.0 |
7.0 |
HB25 |
25.0 |
14.0 |
8.0 |
8.0 |
HB32 |
32.0 |
18.0 |
10.0 |
10.0 |
HB40 |
40.0 |
22.0 |
12.0 |
12.0 |
HB50 |
50.0 |
25.0 |
14.0 |
14.0 |
|
|
|

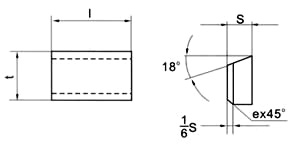

·HC型(Type)
Type |
Dimension(mm) |
l |
t |
s |
HC5 |
5.0 |
3.0 |
2.0 |
HC6 |
6.0 |
4.0 |
2.5 |
HC8 |
8.0 |
5.0 |
3.0 |
HC10 |
10.0 |
6.0 |
4.0 |
HC12 |
12.0 |
8.0 |
5.0 |
HC16 |
16.0 |
10.0 |
6.0 |
HC20 |
20.0 |
12.0 |
7.0 |
HC25 |
25.0 |
14.0 |
8.0 |
HC32 |
32.0 |
18.0 |
10.0 |
HC40 |
40.0 |
22.0 |
12.0 |
HC50 |
50.0 |
25.0 |
14.0 |
|
|

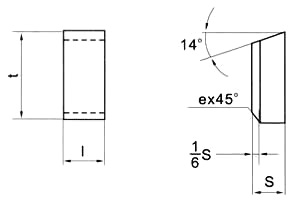

·HD型(Type)
Type |
Dimension(mm) |
l |
t |
s |
HD3 |
3.5 |
8.0 |
3.0 |
HD4 |
4.5 |
10.0 |
4.0 |
HD5 |
5.5 |
12.0 |
5.0 |
HD6 |
6.5 |
14.0 |
6.0 |
HD8 |
8.5 |
16.0 |
8.0 |
HD10 |
10.5 |
18.0 |
10.0 |
HD12 |
12.5 |
20.0 |
12.0 |
|
| |
|
