建材加工工具用硬质合金制品
Hardmetal (carbide) for construction material drilling tools

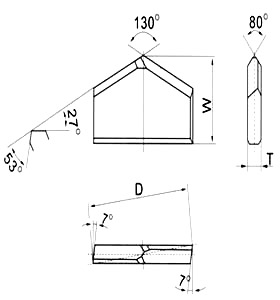

·HW5012型(Type)
Type
Dimension(mm)
D
W
T
5012-12
12.0
8.0
1.8
5012-13
13.0
8.5
2.0
5012-14
14.0
9.0
2.1
5012-15
15.0
10.0
2.2
5012-16
16.0
10.0
2.2
5012-17
17.0
11.0
2.2
5012-18
18.0
11.0
2.2
5012-19
19.0
12.0
2.5
5012-20
20.0
12.0
2.5
5012-22
22.0
13.0
2.5
5012-24
24.0
16.0
3.0
5012-25
25.0
16.0
3.0
5012-26
26.0
16.0
3.0
5012-28
28.0
16.0
4.0
5012-30
30.0
17.0
4.0

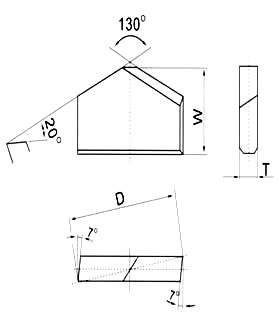

·HW5013型(Type)
Type
Dimension(mm)
D
W
T
5013-3
3.0
3.5
0.8
5013-3.5
3.5
4.0
1.0
5013-4
4.0
3.5
1.0
5013-4.5
4.5
4.0
1.0
5013-5
5.0
4.5
1.2
5013-5.5
5.5
4.8
1.2
5013-6
6.0
5.0
1.4
5013-6.5
6.5
5.2
1.4
5013-7
7.0
5.5
1.6
5013-7.5
7.5
6.0
1.6
5013-8
8.0
6.0
1.8
5013-9
9.0
6.5
2.0
5013-9.5
9.5
7.0
2.0
5013-10
10.0
7.0
2.2
5013-11
11.0
7.5
2.2
5013-12
12.0
8.0
2.5
5013-13
13.0
8.5
2.5
